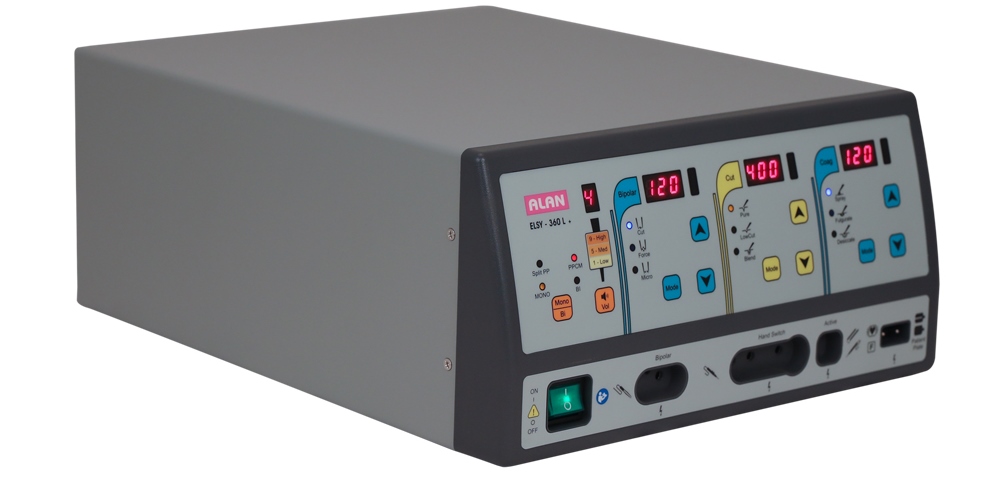

Elsy - 360L+ Series

Category : ESU

Product Id : P-00040

Electrosurgical Diathermy 400 watts

Product Description

Download Description PDF

ALAN's Electrosurgical Unit (Diathermy) is designed with latest miniature electronic circuit design technology. The advanced microcontroller based helps in achieving the desired tissue effects. It is small in size but Surprises on Performance.


SAFETY :
  • Patient Plate Contact Quality Monitoring System
  • HF leakage monitoring & Controlling system.
  • Multiple Microcontroller supervision for RF power accuracy.
  • Realtime tissue impedence monitor for power control
  • Power up Selftest to ensure, the unit healthiness.
  • Handswitch and footswitch short detection during Selftest.
  • Timeout.
RELIABILITY :
  • No need Voltage Stabilizer, can work in lower voltage.
  • Convection Cooling system, offers better Reliability.
  • Built-in line filter protects from voltage surges and bad line Conditions. Hence no need to use of spike buster.
  • Works on Generator, Inverter, & UPS.
  • ALAN's proven track record for more than 10 years.


GENERAL FEATURES :
  • Feather Touch Membrane keyboard for Power, Mode, and Foot switch selection etc. for easy operation of Machine.
  • Monopolar outputs can be activated via Hand switch and Foot switch.
  • Isolated monopolar & Biopolar outputs.
  • Individual Digital display for Bipolar, Monopolar, Cut and Monopolar Coag.
  • Using ALAN's 3 pedal footswitch Monopolar and Biopolar can be operated without changing any setting in the machine.
  • Simultaneous coagulation for 2 surgeons by footswitch / handswitch combination.
  • The unit has 3pedal foot switch, explosion proof / water proof Foot Switch.
  • Multiple Microcontroller supervision Automatic Diagnosis enables Instant power responce against tissue density & impedance variation and adjust power.
  • Restoration of Previous activated power Settings.
  • Reduce R.F distortion due to noiseless performance.
  • Built with Return Electrode / Patient Plate Monitoring System (PPCM), monitors splite and Non Splite type patient plates and deactivates output power with audiovisual alarm during improper contact between patient plate with patient to eliminate the risk of patient burns.
  • Digital volume control and audio-visual indication for all outputs.
  • Well suited for under water, (TURP) Micro and Major Surgeries.
  • User settable maximum RF activation Timeout limit.
  • Umaximum power output of 300 Watts.


MONOPOLAR :

Pure : Monopolar Cut mode for underwater (TURP) and general surgeries.

Low Cut : Mode specifically tailored for Laparoscopy.

Blend : Cutting with coagulation effect.

Fulgurate / Force : A low spray waveform suitable for non-contact coagulation on oozing surfaces and (TURP) underwater coagulation

Desiccate : Standard Coagulation Mode.

BIPOLAR :

Cut / Standard : Best coagulation mode when used with graspers. Specially designed mode for bipolar scissors.

Force / Macro : Faster Biopolar Coagulation.

Micro / Precise : Pinpoint coagulation for delicate tissue with less thermal spread.


INPUT SUPPLY :

Input Supply : 230VAC +- 20% 50 Hz

Power Consumption : 500VA Max.

Loading Duty Factor : 10Sec (Active) / 30 Sec (Pause)

Input Fuse : 3.15A T

Output Control : Digital Display, Push Buttons in all Modes.


TRANSPORT AND STORAGE :

Ambient temperature range : -30 °C to +65 °C

Relative humidity : 0% to 90% non-condensing

Atmospheric pressure : 500 millibars to 1060 milibars

SAFETY STANDARD :

Basic Construction : Accordance with
IEC 60601 - 1,
IEC 60601 - 1 - 2 &
IEC 60601 - 2 - 2

Protection Class : 1

Unit Type : CF

All Output : Floating Output

Electrical Potential : Connecting Pin and Balancing Indicated by Symbol.

Weight : 3.2Kg.

Size (in mm) : 285(W) x 150 (H) x 350(D)
