Product Description
Download Description PDF
DETAILS

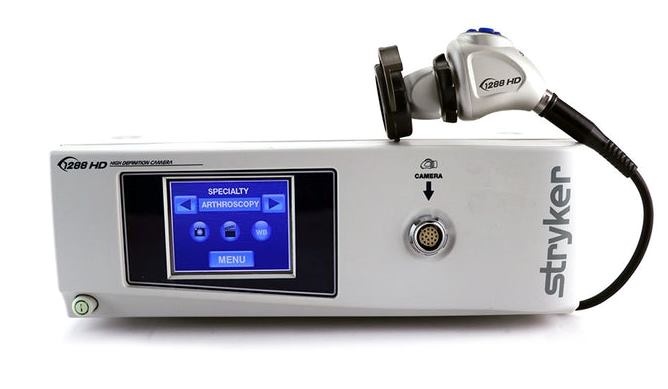

The innovative Stryker 1288 HD 3-Chip Camera offers outstanding picture quality, enhanced clarity and more intuitive user controls.
The Stryker 1288 HD 3-Chip Camera features a 1920x1080p resolution along with nine specialty settings, resulting in optimum color resolution and brightness. Additional benefits of the 1288 HD 3-Chip Camera include wireless transmission capabilities, four fully programmable buttons on the camera head, HD and HDTV outputs, and a touch screen LCD interface for easy navigation. By allowing for backwards compatibility with past generation digital capture devices, scopes and various flat panels, while also offering future capabilities with an optional fiber optic board, the 1288 HD 3-Chip Camera continues to offer new solutions for improved visualization within the OR.
Features:
- Enhanced clarity, depth of focus and sharpness.
- 1920 x 1080p resolution.
- L9000 light source control from the camera head.
- Intuitive touch screen LCD interface.
- Fully programmable buttons.
- 20mm durable coupler with a single-hand focusing design.
- Ergonomic cable connector for reliable connection.
SPECIFICATIONS
Dimensions
- Camera Console: 12.5” (31.8 cm) W x 4.0” (10.2 cm) H x 15.25” (38.7 cm) D
- Camera Head Cable to Console: 10.3 ft (3.15 m) sealed cable
Enhancement
- 16 levels (switchable)
Weight
- 13 lbs (6.0 kg) Camera console
- 0.6 lbs (0.226 kg) Coupler
- 1.6 lbs (0.680 kg) Camera head
Imaging System
- Progressive Scan CCDs, high definition
Video Outputs
- Digital/Analog: Two Digital Video Interface (DVI)/RGBHV | 1280 x 1024 (HD), 720p, 1080p, (HDTV) format
- Connector: 4-pin mini-DIN
- Digital Fiber: HD, HDTV (R, G, B, Clk)
- Connector: Four Lucent fiber connectors with 1.25 mm ferrules
- Digital: One Displayport 1280 x 1024 (HD), 720p, 1080p (HDTV) format
- Connector: 20 pin Displayport
Mounting
- Eyepiece used with C-mount coupler C-mount camera head used with C-mount scopes (C-mount coupler/scope thread: 1-32” UN 2A)
Operating Conditions
- Temperature: 5 - 40°C
- Relative Humidity: 30 - 95%
1288 STRYKER CAMERA (REFURBISHED)
