Product Description
Download Description PDF

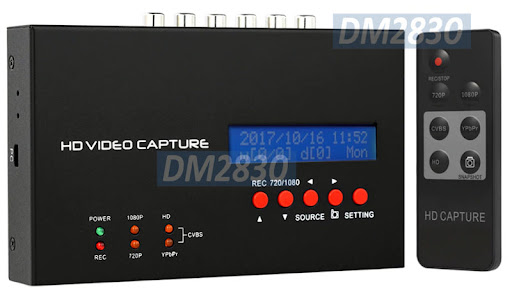

HD VIDEO RECORDER
| Specifications Of HD Video Capture. | ||||
| Connections | ||||
| Interface | USB 2.0 Host | |||
| Video Input | Digital: HDMI | |||
| Analog: Component Video, Composite Video | ||||
| Audio Input | Digital: HDMI | |||
| Analog: 3.5mm Microphone In, RAC L/R Input | ||||
| Video Output | Digital: HDMI (pass through from HDMI or Component or Composite Input) | |||
| Audio Output | Digital: HDMI (pass through from HDMI or RCA L/R Input) | |||
| Analog: 3.5mm sterio (pass through from HDMI or RCA L/R Input) | ||||
| Applicable Connections With Game Consoles | ||||
| HDMI | Industry HD camera, HD Medical Endoscope, TV, gameplay, etc | |||
| Component | TV, gameplay, etc | |||
| Composite | Industry HD camera, HD Medical Endoscope, TV, gameplay, etc | |||
| Note: HDCP contents cannot be recorded. | ||||
| Hardware Extra | ||||
| Codec | Hardware H.264 encorder | |||
| User Interface | Record Button, 720/1080p switch button, source change button. Ezcap283s with 5 more buttons for seting time and schedule | |||
| LED Indicator for working status. Ezcap283s with LCD screen for show tmie and schedule status | ||||
| Infared receiver and 3.5mm expand port for remote controller | ||||
| Volume adjust button for microphone | ||||
| Dimensions | 155(L) X 92(W) X 27(H) mm | |||
| Weight | 365g | |||
| Package Contents | ||||
| Device | Ezcap283/283s HD Video Capture | |||
| Others | DC Adapter, USB cable, Remote Controller, remote expand cable, software CD, manual. | |||
| Standards | ||||
| Storage Media | USB flash Disk, portable Hard Disk | |||
| Max capacity: USB / 2TB | ||||
| Note: The exFAT formet is not supported. | ||||
| Resulation | Input/pass through: | |||
| 720 x 480 (60p), 720 x 576 (50p), 1280 x 720 (50p), 1280 x 720 (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x1080 (24p), 1920 x1080 (25p), 1920 x1080 (30p), 1920 x1080 (50p), 1920 x1080 (60p) | ||||
| Capture: | 720 x 480 (60p), 720 x 576 (50p), 1280 x 720 (50p), 1280 x 720 (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x1080 (24p), 1920 x1080 (25p), 1920 x1080 (30p) | |||
| Record Formet | Video: MP4, Audio: AAC stereo | |||
| Record Quality | Max: 18Mbps@1080p 30fps | |||
| Record File | Max: 2GB / per file, with RTC (real time clock) | |||
| Record Place | Max: 140MB / minute, 8.4GB / Hour | |||
| Power supply | DC 5V / 2A | |||
| Applications | ||||
| Software | Arcsoft Showbiz | |||
| Video Editing | Timeline / Storyboard edit, split / Divide Scenes, multi Trim Scenes…. | |||
| Video Export | Upload to Youtube | |||
| Portable Device: iPad, iPhone, ipod Touch, Apple TV, PSP, PS3, Xbox | ||||
| File: MPEG 1 / 2 / 4 , WMV HD, Quicktime (MOV) | ||||
| Operating System | Windows 8 (32 / 64 bit), windows 7 (32 /64 bit), windows Vista (32 / 64 bit) | |||
| CPU | Intel Core 2 Duo 2.8 GHz, AMD Athion 64x2 Duel Core 3.0GHz | |||
| Memory | 4 GB RAM | |||
| Graphics Card | VGA card with support for DirectX 10.0c or above | |||
HD VIDEO RECORDER
